LM74610-Q1

アクティブ

車載対応、0.48V ~ 42V、ゼロ静止電流 (IQ)、理想ダイオード・コントローラ

製品詳細

Vin (min) (V) 0.48 Vin (max) (V) 42 Number of channels 1 Features Automotive load dump compatibility, Linear control, Reverse current blocking, Reverse polarity protection Iq (typ) (mA) 0 Iq (max) (mA) 0 FET External single FET IGate source (typ) (µA) 10 IGate source (max) (µA) 9.4 IGate sink (typ) (mA) 0.01 IGate pulsed (typ) (A) 0.1 Operating temperature range (°C) -40 to 125 IReverse (typ) (µA) 110 VSense reverse (typ) (mV) 20 Design support EVM Rating Automotive Imax (A) 1.5 VGS (max) (V) 2.5 Device type Ideal diode controller Product type Ideal diode controller
Vin (min) (V) 0.48 Vin (max) (V) 42 Number of channels 1 Features Automotive load dump compatibility, Linear control, Reverse current blocking, Reverse polarity protection Iq (typ) (mA) 0 Iq (max) (mA) 0 FET External single FET IGate source (typ) (µA) 10 IGate source (max) (µA) 9.4 IGate sink (typ) (mA) 0.01 IGate pulsed (typ) (A) 0.1 Operating temperature range (°C) -40 to 125 IReverse (typ) (µA) 110 VSense reverse (typ) (mV) 20 Design support EVM Rating Automotive Imax (A) 1.5 VGS (max) (V) 2.5 Device type Ideal diode controller Product type Ideal diode controller
VSSOP (DGK) 8 14.7 mm² 3 x 4.9
  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results:
    • Exceeds HBM ESD Classification Level 2
    • Device CDM ESD Classification Level C4B
  • Maximum reverse voltage of 45 V
  • No Positive Voltage limitation to Anode Terminal
  • Charge Pump Gate Driver for External N-Channel
    MOSFET
  • Lower Power Dissipation than Schottky
    Diode/PFET Solutions
  • Low Reverse Leakage Current
  • Zero IQ
  • Fast 2-µs Response to Reverse Polarity
  • –40°C to +125°C Operating Ambient Temperature
  • Can be Used in OR-ing Applications
  • Meets CISPR25 EMI Specification
  • Meets Automotive ISO7637 Transient
    Requirements with a Suitable TVS Diode
  • No Peak Current Limit
  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results:
    • Exceeds HBM ESD Classification Level 2
    • Device CDM ESD Classification Level C4B
  • Maximum reverse voltage of 45 V
  • No Positive Voltage limitation to Anode Terminal
  • Charge Pump Gate Driver for External N-Channel
    MOSFET
  • Lower Power Dissipation than Schottky
    Diode/PFET Solutions
  • Low Reverse Leakage Current
  • Zero IQ
  • Fast 2-µs Response to Reverse Polarity
  • –40°C to +125°C Operating Ambient Temperature
  • Can be Used in OR-ing Applications
  • Meets CISPR25 EMI Specification
  • Meets Automotive ISO7637 Transient
    Requirements with a Suitable TVS Diode
  • No Peak Current Limit

The LM74610-Q1 is a controller device that can be used with an N-Channel MOSFET in a reverse polarity protection circuitry. It is designed to drive an external MOSFET to emulate an ideal diode rectifier when connected in series with a power source. A unique advantage of this scheme is that it is not referenced to ground and thus has Zero Iq.

The LM74610-Q1 controller provides a gate drive for an external N-Channel MOSFET and a fast response internal comparator to discharge the MOSFET Gate in the event of reverse polarity. This fast pull-down feature limits the amount and duration of reverse current flow if opposite polarity is sensed. The device design also meets CISPR25 Class 5 EMI specifications and automotive ISO7637 transient requirements with a suitable TVS diode.

The LM74610-Q1 is a controller device that can be used with an N-Channel MOSFET in a reverse polarity protection circuitry. It is designed to drive an external MOSFET to emulate an ideal diode rectifier when connected in series with a power source. A unique advantage of this scheme is that it is not referenced to ground and thus has Zero Iq.

The LM74610-Q1 controller provides a gate drive for an external N-Channel MOSFET and a fast response internal comparator to discharge the MOSFET Gate in the event of reverse polarity. This fast pull-down feature limits the amount and duration of reverse current flow if opposite polarity is sensed. The device design also meets CISPR25 Class 5 EMI specifications and automotive ISO7637 transient requirements with a suitable TVS diode.

ダウンロード 字幕付きのビデオを表示 ビデオ

お客様が関心を持ちそうな類似品

open-in-new 代替品と比較
比較対象デバイスと同等の機能で、ピン配置が異なる製品
LM74700-Q1 アクティブ 車載、3.2V ~ 65V、80μA の静止電流 (IQ)、理想ダイオード・コントローラ This product is a high accuracy (6.5%), adjustable current limit (up to 2A) switch.

技術資料

star =TI が選定したこの製品の主要ドキュメント
結果が見つかりませんでした。検索条件をクリアしてから、再度検索を試してください。
10 をすべて表示
種類 タイトル 最新の英語版をダウンロード 日付
* データシート LM74610-Q1 Zero IQ Reverse Polarity Protection Smart Diode Controller データシート (Rev. B) PDF | HTML 2016年 6月 7日
アプリケーション・ノート Basics of Ideal Diodes (Rev. B) PDF | HTML 2021年 10月 5日
e-Book(PDF) 11 Ways to Protect Your Power Path(英語) 英語版 2020年 10月 30日
試験報告書 Automotive Wide-VIN to Point-of-Load Power Supply Reference Design (Rev. A) 2020年 3月 26日
技術記事 Build a sub-20W CISPR25 Class 5 power design for automotive infotainment processor PDF | HTML 2017年 5月 2日
アプリケーション・ノート Active OR-ing Solution with LM74610 Smart Diode Controller (Rev. B) 2017年 3月 1日
Analog Design Journal Designing the front-end DC/DC conversion stage to withstand automotive transient 2017年 1月 18日
技術記事 Reverse-polarity protection comparison: diode vs. PFET vs. a smart diode solution PDF | HTML 2015年 12月 21日
EVM ユーザー ガイド (英語) LM74610-DQEVM User’s Guide 2015年 10月 12日
EVM ユーザー ガイド (英語) LM74610-SQ EVM User’s Guide 2015年 10月 10日

設計と開発

その他のアイテムや必要なリソースを参照するには、以下のタイトルをクリックして詳細ページをご覧ください。

評価ボード

DRV8243H-Q1EVM — DRV8243-Q1 車載対応、ハードウェア インターフェイス搭載、H ブリッジ モーター ドライバの評価基板

DRV824x-Q1 デバイス・ファミリは、多様な車載アプリケーションを想定した統合型 H ブリッジ・ドライバです。DRV824x-Q1 デバイスは、単一の H ブリッジ ドライバ、または互いに独立した 2 個のハーフブリッジ ドライバとして構成できます。このモノリシック ダイ デバイスは、TI (テキサス・インスツルメンツ) 独自の大電力 BiCMOS プロセス テクノロジー ノードを採用した設計であり、パワー パッケージ封止を通じて優れた電力処理能力と放熱特性を達成すると同時に、コンパクトなパッケージ サイズや、使いやすいレイアウト、EMI (電磁干渉) (...)

ユーザー ガイド: PDF | HTML
評価ボード

DRV8243S-Q1LEVM — DRV8243-Q1 車載対応、SPI インターフェイス搭載、H ブリッジ ドライバの評価基板

DRV824x-Q1 デバイス・ファミリは、多様な車載アプリケーションを想定した統合型 H ブリッジ・ドライバです。DRV824x-Q1 デバイスは、単一の H ブリッジ・ドライバ、または互いに独立した 2 個のハーフブリッジ・ドライバとして構成できます。このモノリシック・ダイ・デバイスは、TI (テキサス・インスツルメンツ) 独自の大電力 BiCMOS プロセス・テクノロジー・ノードを採用した設計であり、パワー・パッケージ封止を通じて優れた電力処理能力と放熱特性を達成すると同時に、コンパクトなパッケージ・サイズや、使いやすいレイアウト、EMI (...)

ユーザー ガイド: PDF | HTML
評価ボード

EVMX777BG-01-00-00 — J6Entry、RSP、TDA2E-17 CPU ボードの評価モジュール

J6Entry, RSP and TDA2E-17 CPU Board EVM is an evaluation platform designed to speed up development efforts and reduce time to market for Infotainment  reconfigurable Digital Cluster or Integrated Digital Cockpit and ADAS applications. The CPU board integrates key peripherals such as parallel (...)
評価ボード

EVMX777G-01-20-00 — J6Entry/RSP インフォテイメント(CPU、ディスプレイ、JAMR3)の評価モジュール

The J6Entry/RSP EVM is an evaluation platform designed to speed up development efforts and reduce time to market for applications such as Infotainment, reconfigurable Digital Cluster or Integrated Digital Cockpit.

The main CPU board integrates these key peripherals such as Ethernet or HDMI, while (...)

評価ボード

LM74610-DQEVM — 逆極性保護スマート・ダイオード・コントローラ OR-ing、評価モジュール

LM74610-DQEVM 評価基板は、ダイオード OR-ing (OR 接続) 構成を形成している複数のショットキー・ダイオードや複数の P チャネル MOSFET を置き換えて逆極性保護を実現する方法を提示します。この逆極性保護ソリューションは、2 個の LM74610 スマート・ダイオード・コントローラを使用して、40V (VDS) に対応する 2 個の外部 N チャネル MOSFET を駆動しています。LM74610-DQEVM は、2 個の個別電圧レールまたは 2 個の個別電源と直列接続する場合、理想ダイオードの特性をエミュレートすることになります。この OR-ing (OR (...)

ユーザー ガイド: PDF
評価ボード

LM74610-SQEVM — 逆極性保護スマート・ダイオード・コントローラ、評価モジュール

LM74610-SQEVM 評価基板は、複数のショットキー・ダイオードや複数の P チャネル MOSFET を置き換えて逆極性保護を実現する方法を提示します。この逆極性保護ソリューションは、LM74610 スマート・ダイオード・コントローラを使用して、40V (VDS) に対応する外部の N チャネル MOSFET にゲート駆動信号を供給しています。LM74610-SQEVM は、電源と直列接続する場合、理想ダイオードの特性をエミュレートすることになります。入力側で負電圧をセンスした場合、LM74610 は MOSFET のゲートをプルダウンし、接続先の負荷を電源から絶縁します。TVS (...)

ユーザー ガイド: PDF
シミュレーション・モデル

LM74610-Q1 TINA-TI Transient Reference Design

SNOM610.TSC (778 KB) - TINA-TI Reference Design
シミュレーション・モデル

LM74610-Q1 TINA-TI Transient Spice Model

SNOM609.ZIP (28 KB) - TINA-TI Spice Model
シミュレーション・モデル

LM74610-Q1 Unencrypted PSpice Transient Model Package (Rev. C)

SNOM560C.ZIP (55 KB) - PSpice Model
シミュレーション・ツール

PSPICE-FOR-TI — TI Design / シミュレーション・ツール向け PSpice®

PSpice® for TI は、各種アナログ回路の機能評価に役立つ、設計とシミュレーション向けの環境です。設計とシミュレーションに適したこのフル機能スイートは、Cadence® のアナログ分析エンジンを使用しています。PSpice for TI は無償で使用でき、アナログや電源に関する TI の製品ラインアップを対象とする、業界でも有数の大規模なモデル・ライブラリが付属しているほか、選択された一部のアナログ動作モデルも利用できます。

設計とシミュレーション向けの環境である PSpice for TI (...)

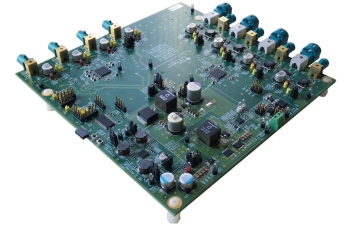

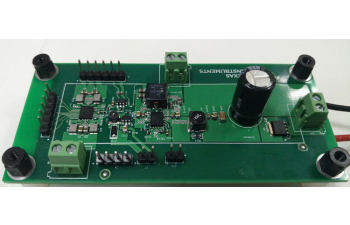

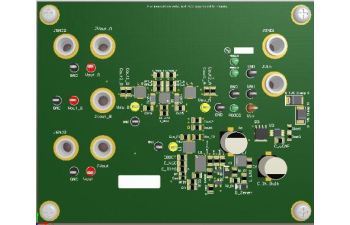

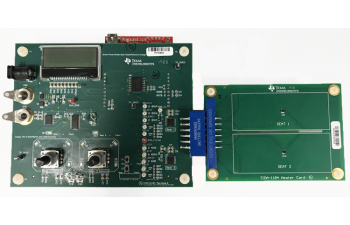

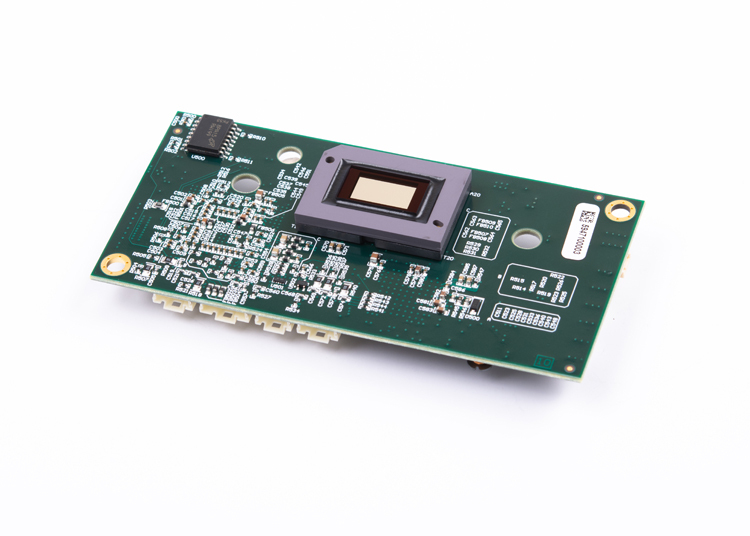

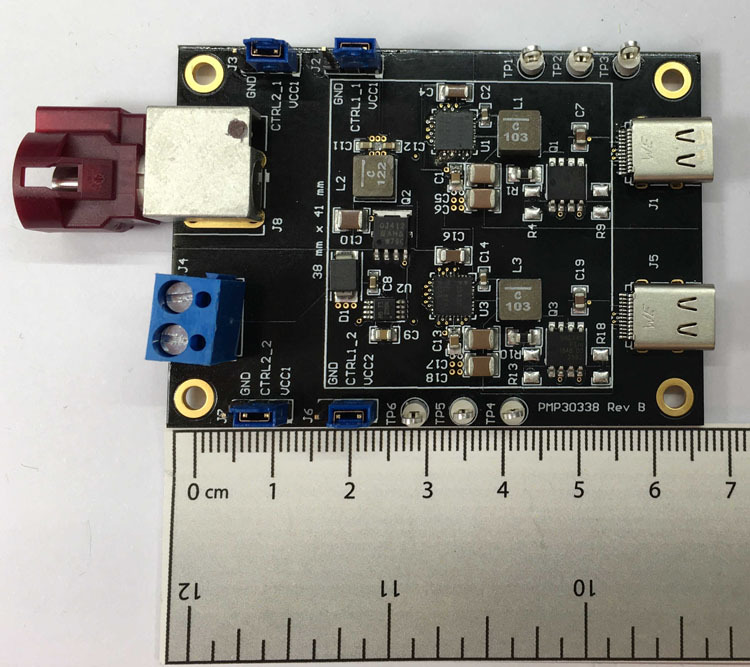

多くの TI リファレンス デザインには、LM74610-Q1 があります。
