製品詳細

Function General-purpose timer Iq (typ) (mA) 0.17 Rating Automotive Operating temperature range (°C) -40 to 125 Supply voltage (max) (V) 15 Supply voltage (min) (V) 2 TI functional safety category Functional Safety-Capable
Function General-purpose timer Iq (typ) (mA) 0.17 Rating Automotive Operating temperature range (°C) -40 to 125 Supply voltage (max) (V) 15 Supply voltage (min) (V) 2 TI functional safety category Functional Safety-Capable
SOIC (D) 8 29.4 mm² 4.9 x 6
  • AEC-Q100 qualified for automotive applications:
    • Temperature grade 1: –40°C to +125°C, TA
  • Functional Safety-Capable
  • Very-low power consumption
    • 1mW (typical) at VDD = 5V
  • Capable of operation in astable mode
  • CMOS output capable of swinging rail to rail
  • High-output-current capability
    • Sink 100mA (typical)
    • Source 10mA (typical)
  • Output fully compatible with CMOS, TTL, and MOS
  • Low supply current reduces spikes during output transitions
  • Single-supply operation from 2V to 15V
  • Temperature range: –40°C to +125°C
  • Functionally interchangeable with the NE555; has same pinout
  • AEC-Q100 qualified for automotive applications:
    • Temperature grade 1: –40°C to +125°C, TA
  • Functional Safety-Capable
  • Very-low power consumption
    • 1mW (typical) at VDD = 5V
  • Capable of operation in astable mode
  • CMOS output capable of swinging rail to rail
  • High-output-current capability
    • Sink 100mA (typical)
    • Source 10mA (typical)
  • Output fully compatible with CMOS, TTL, and MOS
  • Low supply current reduces spikes during output transitions
  • Single-supply operation from 2V to 15V
  • Temperature range: –40°C to +125°C
  • Functionally interchangeable with the NE555; has same pinout

The TLC555-Q1 is a monolithic timing circuit fabricated using TI LinCMOS™ technology. The timer is fully compatible with CMOS, TTL, and MOS logic and operates at frequencies up to 2MHz. As a result of the high input impedance, this device supports smaller timing capacitors than capacitors used by the NE555. Thus, more accurate time delays and oscillations are possible. Power consumption is low across the full power-supply voltage range.

Like the NE555, the TLC555-Q1 has a trigger level equal to approximately one-third of the supply voltage, and a threshold level equal to approximately two-thirds of the supply voltage. These levels can be altered by using the control voltage pin (CONT). When the trigger input (TRIG) falls below the trigger level, the flip-flop is set, and the output goes high. If TRIG is greater than the trigger level and the threshold input (THRES) is greater than the threshold level, the flip-flop is reset and the output goes low. The reset input (RESET) can override all other inputs and is used to initiate a new timing cycle. If RESET is low, the flip-flop is reset and the output goes low. Whenever the output is low, a low-impedance path is provided between the discharge pin (DISCH) and GND. Tie all unused inputs to an appropriate logic level to prevent false triggering.

The TLC555-Q1 is a monolithic timing circuit fabricated using TI LinCMOS™ technology. The timer is fully compatible with CMOS, TTL, and MOS logic and operates at frequencies up to 2MHz. As a result of the high input impedance, this device supports smaller timing capacitors than capacitors used by the NE555. Thus, more accurate time delays and oscillations are possible. Power consumption is low across the full power-supply voltage range.

Like the NE555, the TLC555-Q1 has a trigger level equal to approximately one-third of the supply voltage, and a threshold level equal to approximately two-thirds of the supply voltage. These levels can be altered by using the control voltage pin (CONT). When the trigger input (TRIG) falls below the trigger level, the flip-flop is set, and the output goes high. If TRIG is greater than the trigger level and the threshold input (THRES) is greater than the threshold level, the flip-flop is reset and the output goes low. The reset input (RESET) can override all other inputs and is used to initiate a new timing cycle. If RESET is low, the flip-flop is reset and the output goes low. Whenever the output is low, a low-impedance path is provided between the discharge pin (DISCH) and GND. Tie all unused inputs to an appropriate logic level to prevent false triggering.

ダウンロード 字幕付きのビデオを表示 ビデオ

お客様が関心を持ちそうな類似品

open-in-new 代替品と比較
比較対象デバイスと同等の機能で、ピン互換製品
TLC555 アクティブ 2.1MHz、250μA、低消費電力タイマ Industrial version with similar specifications.

技術資料

star =TI が選定したこの製品の主要ドキュメント
結果が見つかりませんでした。検索条件をクリアしてから、再度検索を試してください。
5 をすべて表示
種類 タイトル 最新の英語版をダウンロード 日付
* データシート TLC555-Q1 Automotive LinCMOS™ Technology Timer データシート (Rev. C) PDF | HTML 2024年 4月 17日
機能安全情報 TLC555-Q1 Functional Safety, FIT Rate, Failure Mode Distribution and Pin FMA (Rev. A) PDF | HTML 2023年 3月 13日
技術記事 Power Tips: Multiply your output voltage PDF | HTML 2016年 7月 20日
設計ガイド EMC Compatible Automotive LED Rear Lamp Sequential-Turn Animation Design Guide 2016年 6月 2日
アプリケーション・ノート TLC555-Q1 Used as a Positive and Negative Charge Pump 2016年 5月 25日

設計と開発

その他のアイテムや必要なリソースを参照するには、以下のタイトルをクリックして詳細ページをご覧ください。

シミュレーション・モデル

TLC555 TINA-TI Astable Reference Design (Rev. B)

SLFM002B.TSC (100 KB) - TINA-TI Reference Design
シミュレーション・モデル

TLC555 TINA-TI Mono Reference Design (Rev. B)

SLFM003B.TSC (102 KB) - TINA-TI Reference Design
シミュレーション・モデル

TLC555 TINA-TI Spice Model

SLFM005.ZIP (9 KB) - TINA-TI Spice Model
シミュレーション・モデル

TLC555x and TLC556x PSpice Model (Rev. E)

SLFJ002E.ZIP (25 KB) - PSpice Model
シミュレーション・ツール

PSPICE-FOR-TI — TI Design / シミュレーション・ツール向け PSpice®

PSpice® for TI は、各種アナログ回路の機能評価に役立つ、設計とシミュレーション向けの環境です。設計とシミュレーションに適したこのフル機能スイートは、Cadence® のアナログ分析エンジンを使用しています。PSpice for TI は無償で使用でき、アナログや電源に関する TI の製品ラインアップを対象とする、業界でも有数の大規模なモデル・ライブラリが付属しているほか、選択された一部のアナログ動作モデルも利用できます。

設計とシミュレーション向けの環境である PSpice for TI (...)

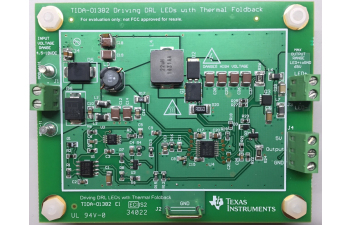

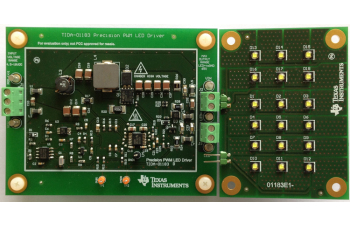

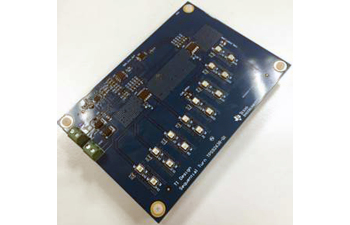

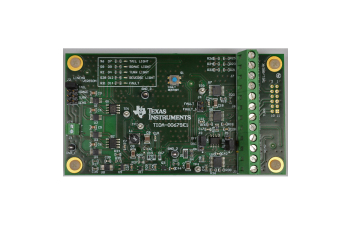

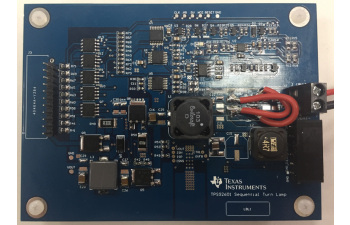

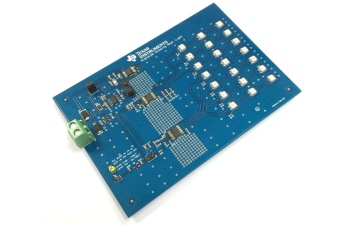

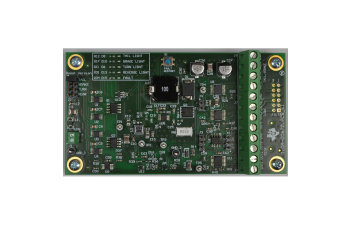

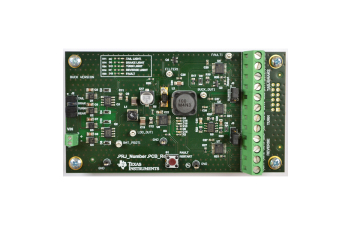

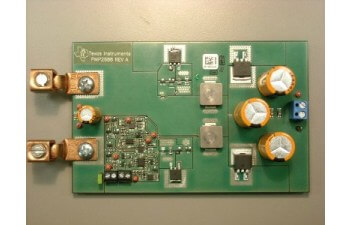

リファレンス・デザイン

PMP31073 — 1.44kW、6 相インターリーブ昇圧コンバータのリファレンス・デザイン

このリファレンス・デザインは、LM5122-Q1 を使用して制御するインターリーブ昇圧コンバータを提示します。9.0V ~ 16.0V の入力電圧範囲に対応し、24.0V の出力電圧で最大 60.0A (相ごとに 10.0A) の負荷電流を供給します。
試験報告書: PDF
パッケージ ピン数 ダウンロード
SOIC (D) 8 オプションの表示
