UCC27524
- Industry-Standard Pinout
- Two Independent Gate-Drive Channels
- 5-A Peak Source and Sink-Drive Current
- Independent-Enable Function for Each Output
- TTL and CMOS Compatible Logic Threshold
Independent of Supply Voltage - Hysteretic-Logic Thresholds for High Noise
Immunity - Inputs and Enable Pin-Voltage Levels Not
Restricted by VDD Pin Bias Supply Voltage - 4.5-V to 18-V Single-Supply Range
- Outputs Held Low During VDD-UVLO, (Ensures
Glitch-Free Operation at Power up and Power
Down) - Fast Propagation Delays (13-ns Typical)
- Fast Rise and Fall Times (7-ns and 6-ns Typical)
- 1-ns Typical Delay Matching Between Two
Channels - Two Outputs are in Parallel for Higher Drive
Current - Outputs Held Low When Inputs Floating
- PDIP (8), SOIC (8), MSOP (8) PowerPAD™ and
3-mm × 3-mm WSON-8 Package Options - Operating Temperature Range of –40°C to 140°C
The UCC2752x family of devices are dual-channel, high-speed, low-side gate-driver devices capable of effectively driving MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, UCC2752x can deliver high-peak current pulses of up to 5-A source and 5-A sink into capacitive loads along with rail-to-rail drive capability and extremely small propagation delay (typically 13 ns). In addition, the drivers feature matched internal propagation delays between the two channels. These delays are very well suited for applications requiring dual-gate drives with critical timing, such as synchronous rectifiers. This also enables connecting two channels in parallel to effectively increase current-drive capability or driving two switches in parallel with one input signal. The input pin thresholds are based on TTL and CMOS compatible low-voltage logic, which is fixed and independent of the VDD supply voltage. Wide hysteresis between the high and low thresholds offers excellent noise immunity.
The UCC2752x family provide the combination of three standard logic options dual inverting, dual noninverting, one inverting and one noninverting driver. UCC27526 features a dual input design which offers flexibility of both inverting (IN pin) and non-inverting (IN+ pin) configuration for each channel. Either IN+ or IN pin controls the state of the driver output. The unused input pin is used for enable and disable functions. For safety purpose, internal pullup and pulldown resistors on the input pins of all the devices in UCC2752x family ensure that outputs are held LOW when input pins are in floating condition. The UCC27523, UCC27524, and UCC27525 devices feature Enable pins (ENA and ENB) to have better control of the operation of the driver applications. The pins are internally pulled up to VDD for active-high logic and are left open for standard operation.
UCC2752x family of devices are available in SOIC-8 (D), MSOP-8 with exposed pad (DGN) and 3-mm × 3-mm WSON-8 with exposed pad (DSD) packages. UCC27524 is also offered in PDIP-8 (P) package. UCC27526 is only offered in 3-mm × 3-mm WSON (DSD) package.
お客様が関心を持ちそうな類似品
比較対象デバイスにアップグレード機能を搭載した、ドロップ・イン代替製品
技術資料
設計と開発
その他のアイテムや必要なリソースを参照するには、以下のタイトルをクリックして詳細ページをご覧ください。
ADS1235EVM — ADS1235 の評価モジュール
The ADS1235 evaluation module (EVM) is a platform for evaluating the ADS1235 analog-to-digital converter (ADC). ADS1235 is a low-drift, 24-bit, 7200-SPS, 6-channel delta-sigma (ΔΣ) ADC with an integrated PGA for low-noise bridge measurements. This sensor-ready ADC provides a (...)
ADS1261EVM — ADS1261 の評価モジュール
The ADS1261 evaluation module (EVM) is a platform for evaluating the ADS1261 analog-to-digital converter (ADC). ADS1261 is a low-drift, 24-bit, 40-kSPS, 10-channel delta-sigma (ΔΣ) ADC with an integrated PGA, voltage reference, and internal fault monitors. This sensor-ready ADC provides (...)
UCC27423-4-5-Q1EVM — UCC2742xQ1 イネーブル付き、デュアル、4A、高速ローサイド MOSFET ドライバの評価モジュール(EVM)
UCD3138HSFBEVM-029 — UCD3138 ハード スイッチング フル ブリッジ コンバータの評価基板
TI (テキサス・インスツルメンツ) の UCD3138HSFBEVM-029 評価基板 (EVM) は、プログラマブル デジタル電源コントローラである UCD3138RHA をベースとする、デジタル制御のハード スイッチング フルブリッジ コンバータです。この評価基板 (EVM) は、48V 入力システム向けの設計を採用した、スタンドアロンの対称型ハード スイッチング フルブリッジ (HSFB) DC/DC パワー コンバータです。UCD3138HSFBEVM-029 は、36Vdc ~ 72Vdc の DC 入力で動作し、公称 12Vdc の出力電圧で、360W の全負荷出力電力、つまり (...)
UCD3138PFCEVM-026 — UCD3138 プログラマブル・デジタル・パワー・コントローラ評価モジュール
The Texas Instruments UCD3138PFCEVM-026 evaluation module (EVM) is a digitally controlled single phase PFC pre-regulator based on the UCD3138 programmable digital power controller. The EVM accepts universal ac line input from 90Vac to 264Vac, 47Hz to 63Hz. The nominal output voltage is 390VDC. (...)
LAUNCHXL-F28027 — C2000 Piccolo マイコン F28027 向けの LaunchPad™ 開発キット
ステップ 1: C2000 MCU F28027 LaunchPad を購入
ステップ 2:「設計を開始」を確認
LAUNCHXL-F28027 はさまざまなプラグオン BoosterPack と互換性のある TI マイコン LaunchPad エコシステムのF2802x シリーズ向けの低コスト評価 / 開発ツールです。LaunchPad はアプリケーション開発の際に、標準化された使いやすいプラットフォームを提供します。
UCC27524 TINA-TI Transient Reference Design
PSPICE-FOR-TI — TI Design / シミュレーション・ツール向け PSpice®
設計とシミュレーション向けの環境である PSpice for TI (...)

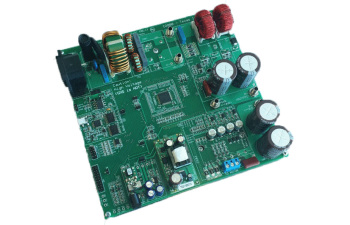

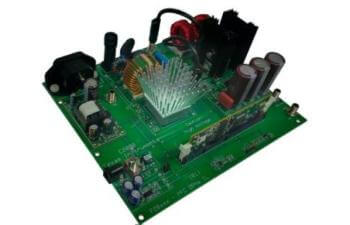

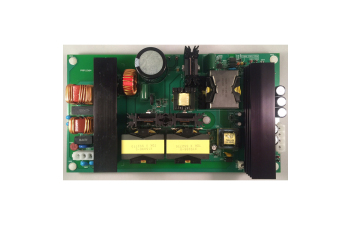

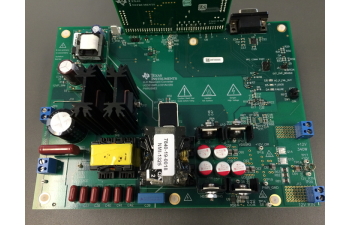

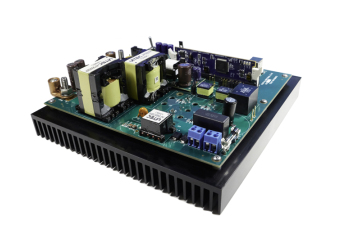

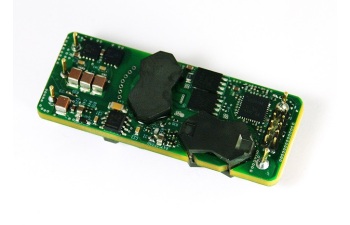

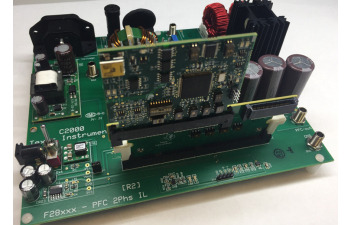

多くの TI リファレンス デザインには、UCC27524 があります。
