MSP430 14 ピン・パッケージ・ボードおよび USB プログラマー
- MSP430 Hardware Tools User's Guide
(PDF 8156 KB)
2018年 11月 1日 （英語）
- 技術資料をすべて表示 (7)

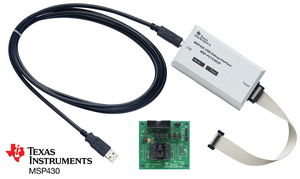

The MSP-FET430U14 is a powerful flash emulation tool that includes the hardware and software required to quickly begin application development on the MSP430 MCU. It includes a ZIF socket target board and a USB debugging interface (MSP-FET430UIF) used to program and debug the MSP430 in-system through the JTAG interface or the pin saving Spy Bi-Wire (2-wire JTAG) protocol. The flash memory can be erased and programmed in seconds with only a few keystrokes, and since the MSP430 flash is ultra-low power, no external power supply is required.
The debugging tool interfaces the MSP430 to the included integrated software environment and includes code to start your design immediately. The MSP-FET430U14 development board supports all MSP430 flash parts in a 14-pin TSSOP package (TI package code: PW).
Device Support: The MSP-TS430PW14 development kit supports the MSP430F20xx, MSP430G2x01, MSP430G2x11, MSP430G2x21 and MSP430G2x31 families of devices in the 14-pin TSSOP package (TI package code: PW).
The ECCN (Export Control Classification Number) classification for this tool will be the same as the included microcontrollers. To find ECCN information for a microcontroller, see the datasheet for that device.
Any use made of Texas Instruments (TI) classifications, whether it be ECCNs or HTS, is without recourse to TI and at the user’s risk. HTS and export classifications are subject to change. Your company, as the exporter of record, is responsible for determining the correct classification of any item at the time of export. Any HTS or export classification by TI is for TI’s internal use only and shall not be construed as a representation or warranty regarding the proper export classification nor relied upon to make licensing determinations.
- USB debugging interface (MSP-FET430UIF) connects a flash-based MSP430 MCU to a PC for real-time, in-system programming and debugging
- Technical specifications:
- Software configurable supply voltage between 1.8 and 3.6 volts at 100mA
- Supports JTAG Security Fuse blow to protect code
- Supports all MSP430 boards with JTAG header
- Supports both JTAG and Spy-Bi-Wire (2-wire JTAG) debug protocols
- Development board with a ZIF socket fitting MSP430 derivatives in 14-pin TSSOP (PW) packages includes an LED indicator, JTAG adapter, and header pin-outs for prototyping
- USB cable and a 14-pin conductor cable is provided
- Includes IAR Kickstart and Code Composer Essentials integrated development environments which includes an assembler, linker, simulator, source-level debugger, and code limited C-compiler
- Full documentation on CD
- One USB debugging interface (MSP-FET)
- One Target board (MSP-TS430PW14)
- MSP430F2013IPW flash devices (2)
- Microcrystal MS1V-T1K 32.768kHz crystal, C(Load) = 12.5pF
