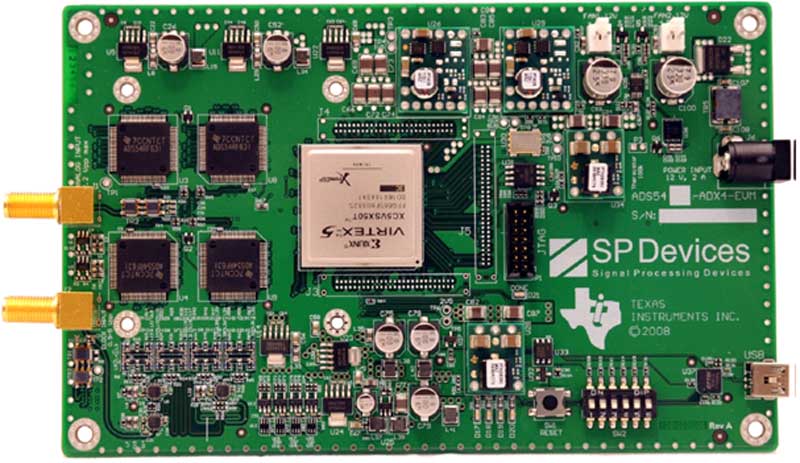

The ADS54RF63-ADX4 is a 12-bit, 2.2 GSPS digitizer solution evaluation module. The EVM incorporates four 12-bit, 550 MSPS ADS54RF63 ADCs operating in an interleaved mode to create a 2.2 GSPS digitizer. The outputs of the four ADCs feed a Xilinx Virtex 5 FPGA which is pre-configured with proprietary interleaving technology from SP Devices.
The SP Devices' interleaving technology continuously analyzes the ADCs' outputs to automatically remove the interleaving spurs arising from gain an mismatch errors, removing the need for costly monitoring components and an off-line recalibration routine. The captured signal is then sent to a PC for further analysis. Those wishing to implement a system utilizing the interleaving technology found on the ADS54RF63-ADX4 will need to contact SP Devices in order to obtain a production licence.
特長
- Four 12-bit, 550 MSPS ADS54RF63 ADCs operating in interleaved mode
- Virtex 5 providing data capture
- SP Devices' interleaving technology removes interleaving gain and phase mismatch spurs Single analog and clock inputs
