PurePath ワイヤレス開発キット 供給状況: 供給中

CC85XXDK

概要/特長

技術資料

サポートとコミュニティ

注文情報


主なドキュメント
Download - PDF Icon

概要

表示  表示 CC85XXDK

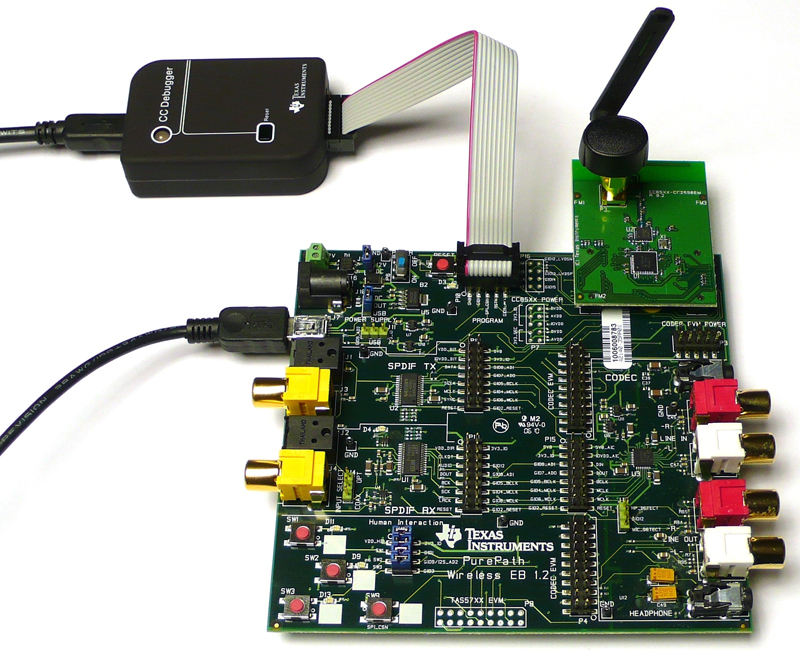

CC85XXDK will let the user fully evaluate PurePath Wireless technology and the CC8520 for wireless audio applications. Audio interfaces available with the kit include S/PDIF optical + coax input/output, line input/output, headphone output and microphone input. A TLV320AIC3101 audio codec is mounted on the PurePath Wireless Audio Evaluation Board, which also has connectors compatible with other TI Codecs. CC85XXDK works with PurePath Wireless Configurator PC tool which helps designers configure and test PurePath Wireless Audio devices.

Target applications:
wireless audio signal cable replacement
wireless headphones
wireless subwoofer

特長

The PurePath Wireless CC85xxDK Development Kit includes:

2 x PurePath Wireless Audio Evaluation Boards
2 x CC85XXEM RF Evaluation Modules
2 x CC85XX-CC2590EM RF Evaluation Modules
2 x 2.4GHz antennas
1 x CC Debugger
2 x Mini USB cable
1 x Mini Jack to RCA male audio cable
1 x RCA male to RCA male audio cable
Documentation

Either a CC85XXEM or a CC85XX-CC2590EM RF Evaluation Board can be plugged onto the PurePath Wireless Audio Evaluation Board to demonstrate lossless wireless audio.


注文
型番 テキサス・インスツルメンツ 供給状況 価格(米ドル)

CC85XXDK:
PurePath ワイヤレス開発キット


供給中 $299.00
技術資料
ユーザー・ガイド (1)
タイトル 概要 種類 サイズ (KB) 日付 表示回数 英語版
PDF 1840 2011年 7月 25日 0
その他の資料 (2)
タイトル 概要 種類 サイズ (KB) 日付 表示回数 TI 推奨 英語版
PDF 2160 2011年 12月 13日 0
PDF 153 2010年 6月 9日 0
関連製品
名前 型番 ソフトウェア・タイプ
Sort Ascending  Sort Descending Sort Ascending  Sort Descending Sort Ascending  Sort Descending
PurePath ワイヤレス・コンフィギュレータ v1.2.2   PUREPATH-WL-CFG  ソフトウェア・ツール
型番 名前 製品ファミリ
Sort Ascending  Sort Descending Sort Ascending  Sort Descending Sort Ascending  Sort Descending
CC2590  2.4GHz RF フロント・エンド  独自仕様の RF
CC8520  PurePath™ ワイヤレス 2.4GHz RF SoC、ワイヤレス・デジタル・オーディオ・ストリーミング用  PAN(パーソナル・エリア・ネットワーク)
CC8521  PurePath™ ワイヤレス 2.4GHz RF SoC、ワイヤレス・デジタル・オーディオ・ストリーミング用  PAN(パーソナル・エリア・ネットワーク)
CC8530  PurePath™ ワイヤレス 2.4GHz RF SoC、ワイヤレス・デジタル・オーディオ・ストリーミング用  PAN(パーソナル・エリア・ネットワーク)
CC8531  PurePath™ ワイヤレス 2.4GHz RF SoC、ワイヤレス・デジタル・オーディオ・ストリーミング用  PAN(パーソナル・エリア・ネットワーク)
