概要
表示 PicoKit3

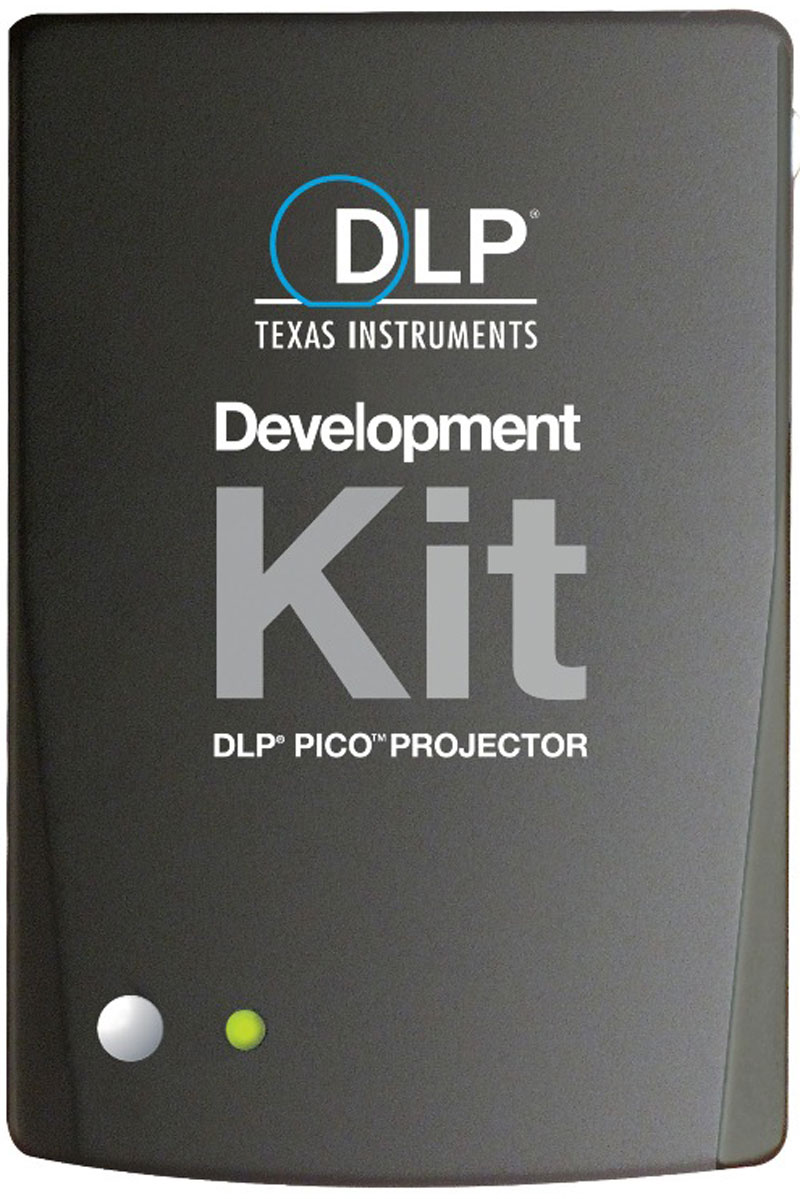

The DLP® Pico™ Projector Development Kit Version 2.0 is a way to incorporate embedded video, portable projection and structured light into your products.
The development kit uses the DLP 0.17 HVGA Chipset available from TI. This Chipset is a miniaturized version of the popular DLP technology found in today's best projectors on the market. Using microscopic mirrors, TI's DLP1700 is a digitally controlled spatial light modulator (SLM) able to create binary light patterns with speed, precision, and efficiency for a multitude of light processing applications.
Utilizing an efficient design with ultra-low power consumption, coupled with the robust DLP1700, you can expedite development and add projection or spatial light modulation into a vast array of products.
The Development Kit for the DLP Pico Projector includes:
- DLP Pico projection device
- Power supply cable (operates from 110V – 220V)
- HDMI video cable
- HDMI-to-DVI adapter
Technical Specifications
- DLP1700 Resolution: HVGA [480 x 320]
- Brightness: 7 lumens
- Contrast ratio: 1000:1
- Light source: Solid-state 3 LED
- Video input: DVI-D RGB888, VGA 50Hz or 60Hz
- Dimensions: 44.8 x 67.4 x 14.2 mm3
This development kit maintains its compact form factor as well as its ability to interface to EVMs such as the Beagle Board to expedite product development.
ORDER NOW at: www.digikey.com/pico
| Digi-Key Part Number | 913-1000-ND |
特長
Version 2.0 of the Pico Projector Development Kit includes the following NEW Features:
- Direct Connection to a PC
- Sync Signal Output for connecting a sensor (e.g. camera)
- Selectable, high-speed DMD (Digital Micromirror Device) pattern rates
- Auxiliary Connector to provide direct and easy access to the I2C bus
- Standard Type C HDMI connector
