UCC24650
- Enables Excellent Load Transient Performance and Zero Standby Power
- Enables Smallest Output Capacitor for Tight ΔVOUT
- No External Components Required
- <50 µA Device Current Consumption (Typical)
- 5-V to 28-V Output Monitoring Capability
- 3% Voltage Droop Detection (Patent Pending)
- 200-V Wake-Up Switch
- Enables and Disables SR Controller, Relay Control, or Other Secondary Circuits
- SOT-23 5-Pin Package
The UCC24650 is an easy-to-use secondary-side voltage monitor that periodically measures its own VDD voltage. A relative droop of 3% from the previous reading triggers a alert signal to a receiving primary-side regulation (PSR) controller. Its low-power consumption helps achieve <5-mW standby loss in many applications.
An internal 200-V MOSFET switch is applied across a ground-referenced rectifier to provide a current-limited pulse to the flyback transformer secondary winding, which couples the signal to the primary-side controller. This signal is repeated at 33 kHz until controller-driven switching activity is detected.
Relative-droop detection allows scaling to any voltage between 5 and 28 V. The alert function allows very-low standby frequency to minimize switching loss and reduction of output capacitance needed to respond to a heavy load step. This monitor is used with a controller capable of detecting the signal, such as the UCC28730 PSR flyback controller.
The UCC24650 also provides an enable and disable signal which can be used to control a secondary-side circuit during no-load conditions to reduce standby power loss. Such a circuit may be a synchronous rectifier controller or a relay driver, for example.
技術資料
種類 | タイトル | 最新の英語版をダウンロード | 日付 | |||
---|---|---|---|---|---|---|
* | データシート | UCC24650 200-V Wake-Up Monitor for Fast Transient PSR データシート | PDF | HTML | 2015年 2月 4日 | ||
その他の技術資料 | Achieving High Power Density and Ultra Low Standby Power in Flyback Converters | 2021年 3月 23日 | ||||
技術記事 | Get smarter about ‘zero’ standby power in your next appliance design | PDF | HTML | 2018年 8月 27日 | |||
アプリケーション・ノート | Rapid Transient Response With UCC28633 PSR-Flyback and UCC24650 Wake-Up Monitor | 2015年 2月 27日 | ||||
EVM ユーザー ガイド (英語) | Using the UCC28730EVM-552 10-W Adaptor Module With PSR and Wake-Up Monitor | 2015年 2月 6日 |
設計と開発
その他のアイテムや必要なリソースを参照するには、以下のタイトルをクリックして詳細ページをご覧ください。
UCC28730EVM-552 — UCC28730 1 次側フライバック コンバータと、2 次側ウェーク アップ機能を実現する UCC24650 の組み合わせ
UCC28730EVM-552 評価基板は、10W のオフライン DCM (不連続導通モード) フライバック コンバータで、フォトカプラを使用せずに、定電圧 (CV) と定電流 (CC) の出力安定化を実現します。 1 次側コントローラは、2 次側電圧ドループ モニタである UCC24650 からのウェークアップ信号を検出し、大きな負荷ステップに対する過渡応答を向上させます。 この評価基板 (EVM) は、UCC28730 が内部の 700V スタートアップ (...)

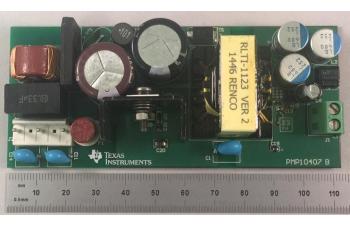

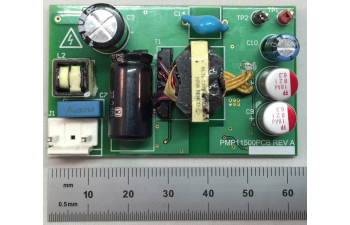

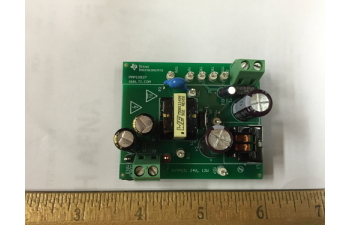

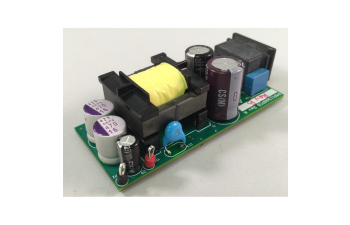

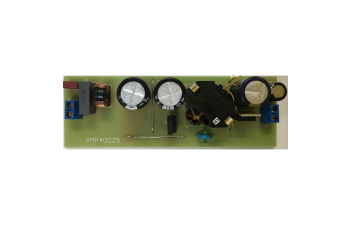

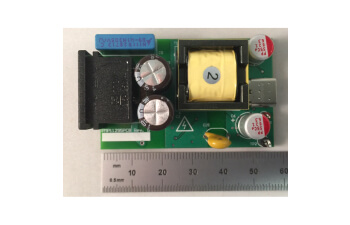

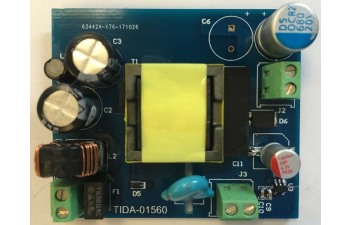

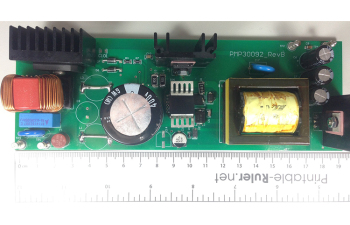

多くの TI リファレンス デザインには、UCC24650 があります。
TI のリファレンス デザイン セレクション ツールを使用すると、開発中のアプリケーションやパラメータとの適合度が最も高いデザインの確認と特定を進めることができます。
パッケージ | ピン数 | ダウンロード |
---|---|---|
SOT-23 (DBV) | 5 | オプションの表示 |
