MSP-TS430PZ100 - MSP430F4x MCU の 100 ピン・ターゲット開発ボード

MSP-TS430PZ100

購入

概要

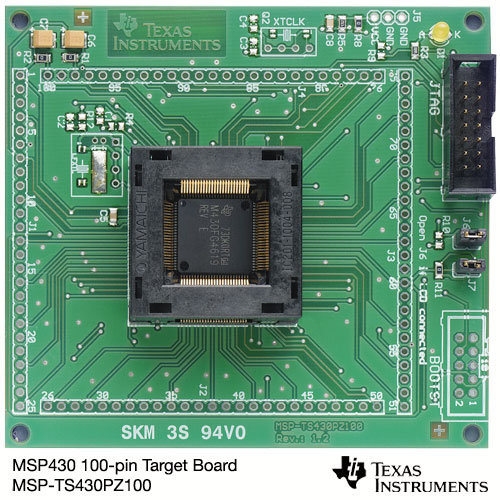

The MSP-TS430PZ100 is a standalone ZIF socket target board used to program and debug the MSP430 MCU in-system through the JTAG interface or the Spy Bi-Wire (2-wire JTAG) protocol. A USB connector is included on the board.

Device Support: The MSP-TS430PZ100 development board supports MSP430F43x, MSP430F43x1, MSP430F44x, MSP430FG461x and MSP430F47xx MCUs in a 100-pin TQFP package (TI package code: PZ).

A flash emulation tool (FET) may be purchased independently (MSP-FET430UIF) or bundled with a target board (MSP-FET430U100).

The ECCN (Export Control Classification Number) classification for this tool will be the same as the included microcontrollers. To find ECCN information for a microcontroller, see the datasheet for that device.

Any use made of Texas Instruments (TI) classifications, whether it be ECCNs or HTS, is without recourse to TI and at the user’s risk. HTS and export classifications are subject to change. Your company, as the exporter of record, is responsible for determining the correct classification of any item at the time of export. Any HTS or export classification by TI is for TI’s internal use only and shall not be construed as a representation or warranty regarding the proper export classification nor relied upon to make licensing determinations.

特長
  • Development board (MSP-TS430PZ100) with a ZIF socket fitting some MSP430 derivatives in 100-pin TQFP (PZ) packages includes an LED indicator, JTAG adapter, and header pin-outs for prototyping
  • Supports all debugging interfaces using a standard 14-pin JTAG header such as the MSP-FET430UIF

What's Included

MSP430 マイコン
MSP430F435 16KB フラッシュ、512 バイト SRAM、12 ビット ADC、コンパレータ、SPI/UART、160 セグメント LCD 搭載、8MHz マイコン MSP430F4351 16KB フラッシュ、512B SRAM、コンパレータ、SPI/UART、160 セグメント LCD 搭載、8MHz マイコン MSP430F436 24KB フラッシュ、1KB SRAM、12 ビット ADC、コンパレータ、SPI/UART、160 セグメント LCD 搭載、8MHz マイコン MSP430F4361 24KB フラッシュ、1KB SRAM、コンパレータ、SPI/UART、160 セグメント LCD 搭載、8MHz マイコン MSP430F437 32KB フラッシュ、1KB SRAM、12 ビット ADC、コンパレータ、SPI/UART、160 セグメント LCD 搭載、8MHz マイコン MSP430F4371 32KB フラッシュ、1KB SRAM、コンパレータ、SPI/UART、160 セグメント LCD 搭載、8MHz マイコン MSP430F447 32KB フラッシュ、1KB SRAM、12 ビット ADC、コンパレータ、SPI/UART、160 セグメント LCD 搭載、8MHz マイコン MSP430F448 48KB フラッシュ、2KB SRAM、12 ビット ADC、コンパレータ、SPI/UART、160 セグメント LCD 搭載、8MHz マイコン MSP430F449 60KB フラッシュ、2KB SRAM、12 ビット ADC、コンパレータ、SPI/UART、160 セグメント LCD 搭載、8MHz マイコン MSP430F4783 3 個のデルタ・シグマ ADC、160 セグメント LCD、48KB フラッシュ、2KB RAM 搭載、16MHz 単相メーター向けマイコン MSP430F4784 4 個のデルタ・シグマ ADC、160 セグメント LCD、48KB フラッシュ、2KB RAM 搭載、16MHz 単相メーター向けマイコン MSP430F4793 3 個のデルタ・シグマ ADC、160 セグメント LCD、60KB フラッシュ、2.5KB RAM 搭載、16MHz 単相メーター向けマイコン MSP430F4794 4 個のデルタ・シグマ ADC、160 セグメント LCD、60KB フラッシュ、2.5KB RAM 搭載、16MHz 単相メーター向けマイコン MSP430FG4616 92KB フラッシュ、4KB SRAM、12 ビット ADC、デュアル DAC、DMA、3 個のオペアンプ、160 セグメント LCD 搭載、8MHz マイコン MSP430FG4617 92KB フラッシュ、8KB SRAM、12 ビット ADC、デュアル DAC、DMA、3 個のオペアンプ、160 セグメント LCD 搭載、8MHz マイコン MSP430FG4618 116KB フラッシュ、8KB SRAM、12 ビット ADC、デュアル DAC、DMA、3 個のオペアンプ、160 セグメント LCD 搭載、8MHz マイコン MSP430FG4619 120KB フラッシュ、4KB SRAM、12 ビット ADC、デュアル DAC、DMA、3 個のオペアンプ、160 セグメント LCD 搭載、8MHz マイコン
ダウンロード 字幕付きのビデオを表示 ビデオ

購入と開発の開始

ハードウェア、ソフトウェア、資料のパッケージ詳細

ハードウェアとソフトウェアのパッケージ

Start your general purpose development using target board for MSP430F4x MCUs

パッケージの表示
ハードウェアとソフトウェアのパッケージ

Start your production programming using our target board for MSP430F4x MCUs

パッケージの表示

このハードウェアのみ購入

開発キット

MSP-TS430PZ100 — MSP-TS430PZ100 - MSP430F4x MCU の 100 ピン・ターゲット開発ボード

TI.com で取り扱いなし
TI の評価品に関する標準契約約款が適用されます。

技術資料

star
= TI が選択した主要ドキュメント
結果が見つかりませんでした。検索条件をクリアして、もう一度検索を行ってください。
すべて表示 7
種類 タイトル 英語版のダウンロード 日付
* ユーザー・ガイド MSP430 Hardware Tools User's Guide (Rev. AH) PDF | HTML 2021年 3月 23日
ユーザー・ガイド IAR Embedded Workbench IDE Version 7+ for MSP430 MCUs (Rev. AS) 2020年 12月 14日
ユーザー・ガイド Code Composer Studio IDE v10.x for MSP430 MCUs (Rev. AS) 2020年 5月 5日
証明書 MSP-TS430PZ100 EU Declaration of Conformity (DoC) 2019年 1月 2日
ユーザー・ガイド Code Composer Studio v7.x for MSP430 User's Guide (Rev. AP) 2017年 11月 13日
ユーザー・ガイド IAR Embedded Workbench Version v7+ for MSP430 User's Guide (Rev. AP) 2017年 11月 13日
ユーザー・ガイド Code Composer Studio™ v5.2 ユーザーズ・ガイド (Rev. U 翻訳版) 最新の英語版をダウンロード (Rev.AS) 2012年 12月 14日
